Digital Temperature Sensor
Each AVTECH Digital Temperature Sensor provides real-time temperature values from -67 to 257 degrees Fahrenheit and/or -55 to 125 degrees Celsius. Accuracy is within + / - 0.5 degrees.
Digital Outdoor Temperature Sensor
Monitor outdoor temperature with AVTECH's
Digital Outdoor Temperature Sensor This sensor
provides real-time temperature values from -67 to
257 degrees Fahrenheit and/or -55 to 125 degrees
Celsius. Accuracy is within + / - 0.5 degrees. The
external silicon coating makes the Digital Outdoor
Temperature Sensor resilient enough for temperature
monitoring outdoors or in other harsh environments.
This is a dynamic sensor that provides temperature
values every two seconds and feeds temperature data
back to the Room Alert or TemPageR ID box for data
logging, alerting and automatic corrective action.
This is an instant 'Plug & Play' sensor via one of
the standard RJ-11 jacks on any compatible Room
Alert or TemPageR ID box
Digital Temperature/Humidity Sensor
Each AVTECH Digital Temperature / Humidity
Sensor provides real-time temperature values
from -67 to 257 degrees Fahrenheit and/or -55 to 125
degrees Celsius. Accuracy is within + / - 0.5
degrees. The humidity range is from 0% to 100%
relative humidity (RH). Accuracy is within + / -
3.5%.
This is a dynamic sensor that provides temperature
and humidity values every two seconds and feeds
temperature and humidity data back to the Room Alert
ID box for data logging, alerting and automatic
corrective action. This is an instant 'Plug & Play'
sensor via one of the standard RJ-11 jacks on any
compatible Room Alert or ID box.
Digital Fluid Temperature Sensor
Each AVTECH Digital Fluid Temperature Sensor
provides real-time temperature values from -67 to
257 degrees Fahrenheit and/or -55 to 125 degrees
Celsius. Accuracy is within + / - 0.5 degrees.
The Digital Fluid Temperature Sensor consists of a
temperature probe encased in a sealed tube
containing Propylene Glycol. Propylene Glycol is a
colorless liquid with extremely low freezing and
high boiling points. Its non-conductive nature makes
it a perfect sensor for monitoring the temperature
of fluids in extreme environments such as labs that
monitor vaccines, plasma, IV bags and/or other
specimens, aquariums, refrigeration devices or other
locations where fluid temperature must be monitored
and/or regulated.
When used with AVTECH’s Room Alert and/or TemPageR
environment monitors, the Digital Fluid Temperature
Sensor will feed temperature data back to the ID box
every two seconds in real-time, for data logging,
graphing, alerting and automatic corrective action.
This is an instant 'Plug & Play' sensor via one of
the standard RJ-11 jacks on any compatible Room
Alert or TemPageR ID box.
Relay (Low Volt Devices)
The AVTECH Relay Sensor allows low voltage
devices to be turned on/off. The Relay Sensor
supports up to 4 devices with visible relay status
lights. Each relay supports loads up to 0.3A at
125VAC or 1A at 24VDC.
The first three (3) relay outputs on the Relay
Sensor can be individually controlled and activated
directly from the Room Alert Web Interface or in
response to an alarm condition. The forth relay
output can be used as a general alarm output and
will be activated whenever any of the first three
(3) relay outputs are activated.
Flood Sensor (Spot)
Each AVTECH Flood Sensor (Spot) provides
real-time recognition of flood or water and includes
specially designed electronics that allow it to
interface with Room Alert products as a switch
sensor. Powered by a 9v Alkaline battery (included),
this model triggers an alert if the sensor is
activated.
This is an instant 'Plug & Play' sensor via one of
the switch sensor channels on the back of the any
compatible Room Alert ID box.
Power Sensor
Each AVTECH Power Sensor provides real-time
recognition of a power source going off or coming
on. Common use is to monitor main, 3 phase or UPS
power supply.
This is a switch sensor that comes complete with its
own 5V power adapter that plugs directly into the
power source being monitored. The power adapter size
is very small and allows for use on any outlet,
power bar, rack or UPS. This is an instant 'Plug &
Play' sensor via one of the switch sensor channels
on the back of any compatible Room Alert ID box.
Mini UPS & Power
AVTECH's Mini UPS & Power Sensor is a unique
sensor/UPS combination that detects loss of main
power while providing seamless battery backup power
for approximately fifteen (15) minutes or more
beyond loss of power. Total run time depends upon
the power draw of the supported AVTECH environment
monitor or other 5V device. Red and Green status
LEDs allow users to instantly know the power status
at a glance. Compact and lightweight, the MUPS is
perfect for small, weight sensitive or remote
locations where standard UPS models are difficult or
impossible to accommodate.
The MUPS includes a built-in power sensor and can be
monitored by any Room Alert environment monitoring
unit to indicate a loss of main power by simply
connecting the relay output on the MUPS back to the
Room Alert monitor, located up to 300m
away using a standard twisted pair wire. When a loss
of power occurs, the MUPS is immediately and
seamlessly enabled to supply continuous power long
enough for the connected Room Alert unit to send out
alert notifications and initiate server shut downs
or other actions. Room Alert products can send
status and alert notifications via email,
email-to-SMS, SNMP and more to devices like
computers, mobile phones, pagers and PDAs.
Flood Sensors /w Cable 8m
Each AVTECH Flood Sensor with attached
sensor cable is activated by liquid (i.e. water,
fluid, etc.) making contact with the attached Flood
Sensor Cable of any length. The Flood Sensor Cable
can detect as little water as a single drop. Once
liquid is detected the Flood Sensor triggers an
alarm condition allowing the Room Alert hardware,
Device ManageR software and/or other monitoring
application to send out alerts and/or take automatic
corrective action.
This is an instant 'Plug & Play' sensor via one of
the switch sensor channels on the back of any
compatible Room Alert ID box. The Flood Sensor Cable
can be extended by adding one or more 2,4m
Flood Sensor Cable Extensions (sold
separately)
Flood Sensors /w Cable 2,7m
Each AVTECH Flood Sensor with attached
sensor cable is activated by liquid (i.e. water,
fluid, etc.) making contact with the attached Flood
Sensor Cable of any length. The Flood Sensor Cable
can detect as little water as a single drop. Once
liquid is detected the Flood Sensor triggers an
alarm condition allowing the Room Alert hardware,
Device ManageR software and/or other monitoring
application to send out alerts and/or take automatic
corrective action.
This is an instant 'Plug & Play' sensor via one of
the switch sensor channels on the back of any
compatible Room Alert ID box. The Flood Sensor Cable
can be extended by adding one or more 2,4m
Flood Sensor Cable Extensions (sold
separately)
Flood Sensor Extension
The AVTECH Room Alert Flood Cable Extension
is used to extend an existing Flood Sensor Cable
configuration. This extension is attached inline
between the leader cable and the existing Flood
Sensor Cable.
This Flood Cable Extension requires a Flood Sensor
Cable with leader cable. The Flood Sensor Cable can
be further extended by adding one or more additional
2,4m Flood Cable
Extensions (sold separately).
Smoke Sensor w/Escape Light
Each AVTECH Smoke Sensor provides real-time
recognition of smoke or fire and includes specially
designed electronics that allow it to interface with
Room Alert products as a switch sensor. Powered by
one 9V Alkaline battery (included), this model has a
bright 'escape' light and loud 'buzzer' that are
triggered if the sensor is activated.
This is an instant 'Plug & Play' sensor via one of
the switch sensor channels on the back of any
compatible Room Alert ID box
Motion Sensor
Each AVTECH Motion Sensor is a movement
sensing device specially equipped with additional
electronics that allow it to interface with any
compatible Room Alert ID box. The motion sensor is
powered by a 12V DC power supply and is designed to
detect movement up to 35' away with a cone coverage
of approximately 84 degrees wide.
This is an instant 'Plug & Play' sensor via one of
the switch sensor channels on the back of any
compatible Room Alert ID box.
Sound, Light & Entry Sensor (SLE)
Each AVTECH Sound, Light & Entry Sensor
provides real-time recognition of sound, light
and/or entry such as a door opening, closing, etc.
With adjustable sensitivities, the Sound, Light &
Entry Sensor is designed to be mounted on a vertical
surface such as a wall or pillar in unmanned
closets, telecom rooms, remote data rooms or other
low traffic facilities.
This is an instant 'Plug & Play' sensor via one of
the switch sensor channels on the back of any
compatible Room Alert ID box.
Room Entry Sensor
Each AVTECH Room Entry Sensor provides
real-time recognition of a door or cabinet being
open. Standard use is to mount the wired sensor to
the frame of a door. Then, mount the matching
actuator opposite of the sensor on the door itself.
When the door opens, the two components separate and
the sensor trips.
This is an instant 'Plug & Play' sensor via one of
the switch sensor channels on the back of any
compatible Room Alert ID box.

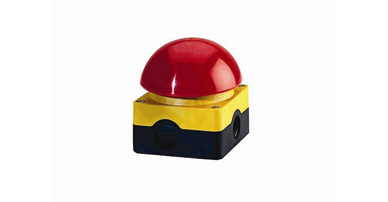

Panic Button 1
Each AVTECH Panic Button 1 (palm or foot
size) can be used as an emergency alarm to provide
warning where someone is working and may need help
or conditions reach an alarming state. When the
Panic Button is pressed, Room Alert will send an
alarm. The alarm condition or status will continue
until the Panic Button is manually reset.
This is an instant 'Plug & Play' sensor via one of
the switch sensor channels on the back of any
compatible Room Alert ID box.

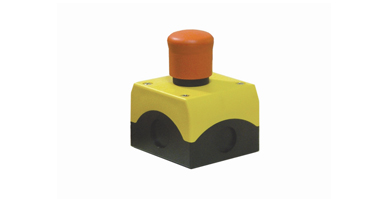

Panic Button 2
Each AVTECH Panic Button 2 (medium palm
size) can be used as an emergency alarm to provide
warning where someone is working and may need help
or conditions reach an alarming state. When the
Panic Button is pressed, Room Alert will send an
alarm. The alarm condition or status will continue
until the Panic Button is manually reset.
This is an instant 'Plug & Play' sensor via one of
the switch sensor channels on the back of any
compatible Room Alert ID box.

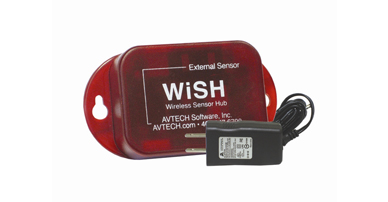

Wireless Sensor Hub (Powered)
The AVTECH Powered Wireless Sensor Hub (P-WiSH)
is a wireless hub that is used exclusively to
transmit sensor data from internal and connected
sensors back to the Room Alert 32W IT environment
monitoring hardware unit. The WiSH sensor
communicates directly with the Room Alert 32W via a
secure, private protocol on a ZigBee based 2.4 Ghz
wireless connection. Data sent and retrieved is
encrypted and will not interfere with other wireless
devices in the environment.
The WiSH sensor consists of one (1) built-in Digital
Temperature sensor, two (2) External Environment
Sensor Channels (i.e. digital sensor ports) for
connecting AVTECH digital sensors and one (1) Switch
Sensor Contact Set for connecting a non-voltage
switch sensor (i.e. power, flood, smoke, etc.).

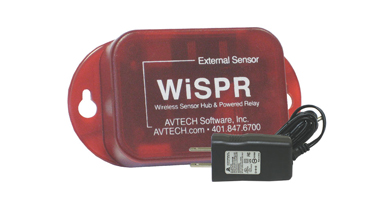

Wireless Sensor Hub & Powered Relay
The AVTECH Wireless Sensor Hub & Powered Relay
(WiSPR) is a wireless hub that is used to relay
sensor data between WiSH sensors and the Room Alert
32W IT environment monitoring hardware unit,
allowing users to extend the length of their
wireless monitoring. The WiSPR sensor communicates
directly with the Room Alert 32W and WiSH sensors
via a secure, private protocol on a ZigBee based 2.4
Ghz wireless connection. Data sent and retrieved is
encrypted and will not interfere with other wireless
devices in the environment.
The WiSPR sensor consists of one (1) built-in
Digital Temperature sensor, two (2) External
Environment Sensor Channels (i.e. digital sensor
ports) for connecting AVTECH digital sensors and one
(1) Switch Sensor Contact Set for connecting a
non-voltage switch sensor (i.e. power, flood, smoke,
etc.).
